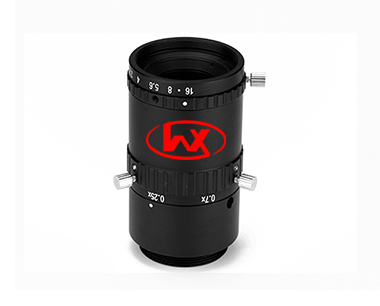

| 型號 | XM7510A | ||||||
| 焦距 | 75mm | ||||||
| 通光孔徑 | 3.8-16 | ||||||
| 法蘭長度 | 17.526 | ||||||
| 接口 | C Mount | ||||||
| 畸變 | <0.05% | ||||||
| 工作距離 | 倍率 | FOV(mm) | |||||
| 1.1"(Φ17.6) | 1"(Φ16) | 2/3"(Φ11) | |||||
| H | V | H | V | H | V | ||
| 257 | -0.38× | 37.05 | 27.78 | 33.68 | 25.26 | 23.15 | 17.36 |
| 357 | -0.25× | 56.32 | 42.24 | 51.2 | 38.4 | 35.2 | 26.4 |
| 471 | -0.18× | 78.22 | 58.66 | 71.11 | 53.33 | 48.88 | 36.66 |
